Non Woven Side Gusset Bag Making Machine
Non Woven Side Gusset Bag Making Machine Feature and CharacteristicsThis machine is our 2014 latest design. It can directly forming non woven box bag with loop handle automatically. The finished bag no need reerse. It's a perfect machine for win bag, drink bag and shopping bag production.Machin......
Send Inquiry
Product Description
Non Woven Side Gusset Bag Making Machine
Feature and Characteristics
This machine is our 2014 latest design. It can directly forming non woven box bag with loop handle automatically. The finished bag no need reerse. It's a perfect machine for win bag, drink bag and shopping bag production.
Machine Advantages
| Advantage 1 | One Time Forming |
| The world's initiative bag making machine with China national patent, formed a bag by one time off | |
| Advantage2 | Durable |
| Since there is no needle damage on the cloth, the fastness were further enhanced Pull strength increased from 10kg(hand sewing bags) to 20kg | |
| Advantage3 | Efficient Productivity |
| Only need 2 operators, greatly saved the labor cost, Ensure big order's timely delivery with 10% drop in overall market price | |
Main Technical Variables
| Type | Leader |
| Production Speed | 50pcs/min |
| Bag Size | 9-20cm (Gusset) |
| 24-50cm(Width) | |
| 9-20cm(High) | |
| Loop Hnalde Range | 37-52cm |
| Air Pressure Request | 1.m^3/min, 1.0Mpa |
| Total Power | 28Kw |
| Power Request | 380V, 50Hz, 3Phase |
| Overall size(L*W*H) | 7100*2600*3300mm |
| Total Weight | 6500KGS |
Packaging: wooden splint, within 1*40ft container

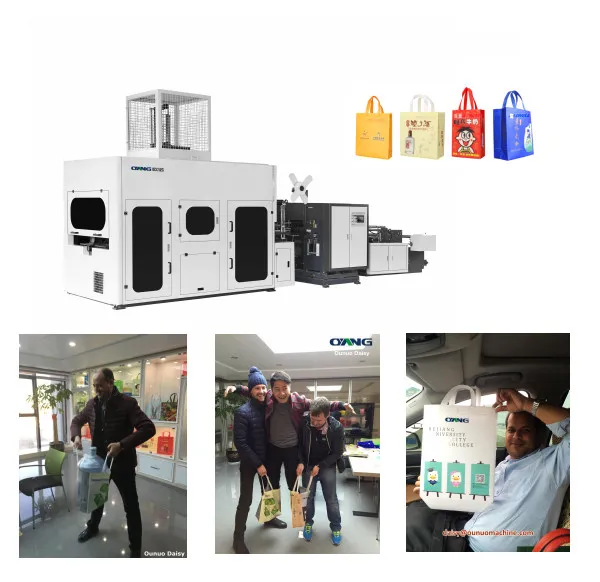

Machine compare to others bags

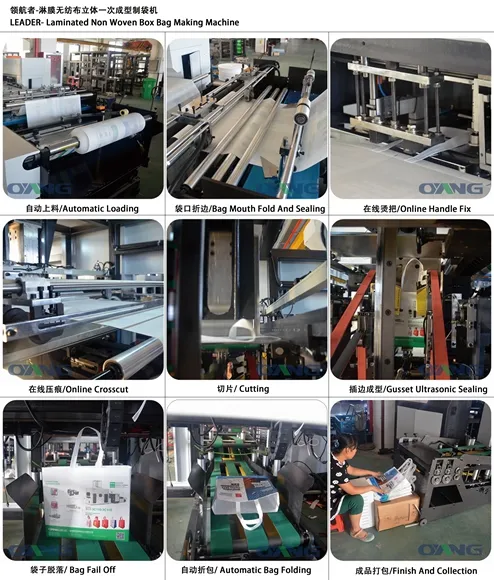

Machine Produce Process
More details, please free to contact Daisy He.
