5L drinking water filling production line machine

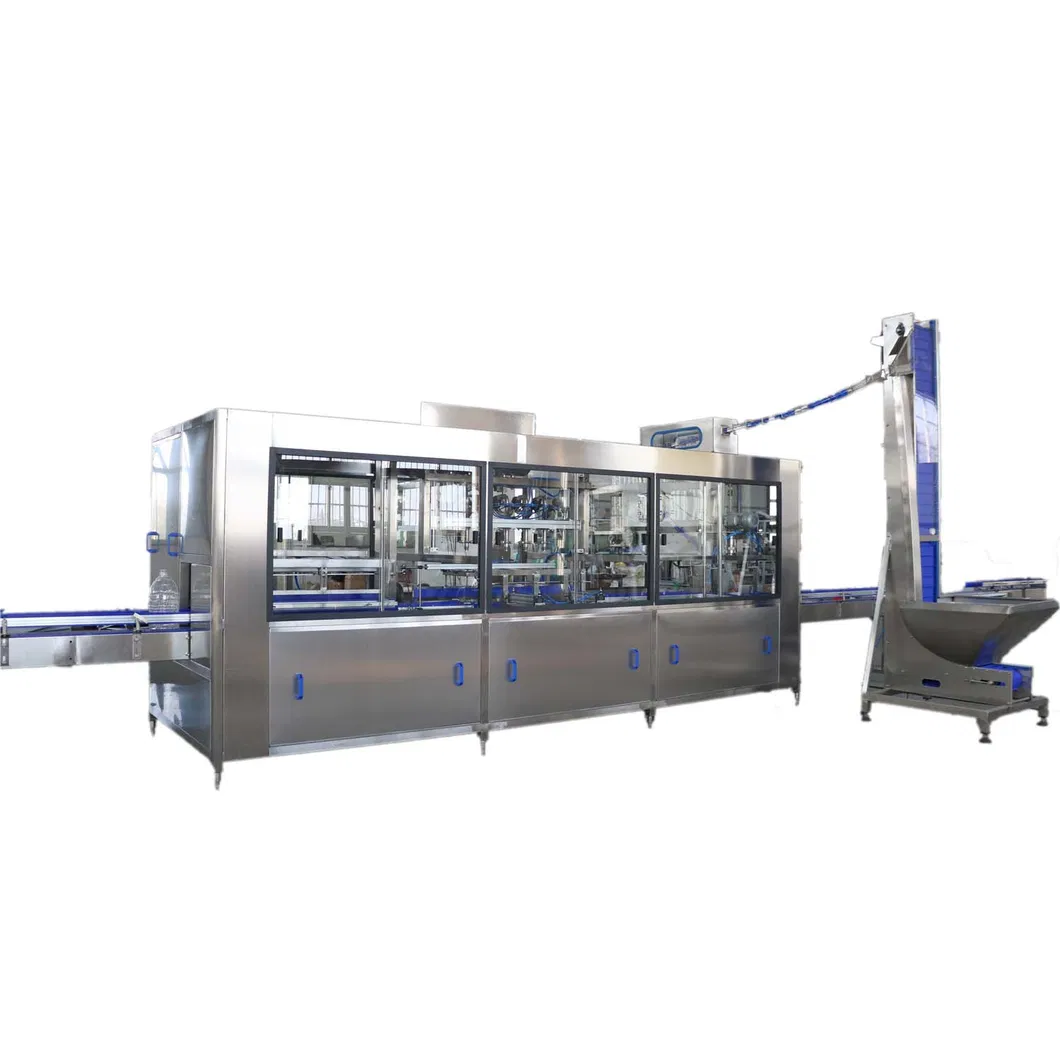

5L -800BPH Automatic washing filling capping machine
This machine with the functions of automatic washing filling capping 3-in-1 ,.it is designed by our company . With good structure and controlled by PLC with touch screen . Main material is SUS304.the machine is automatic working .
main parameters

name	5L automatic washing filling capping 3-in-1 machine
Model	XGF-8-8-2
Capacity	800BPH -1000bph based on 5L bottles

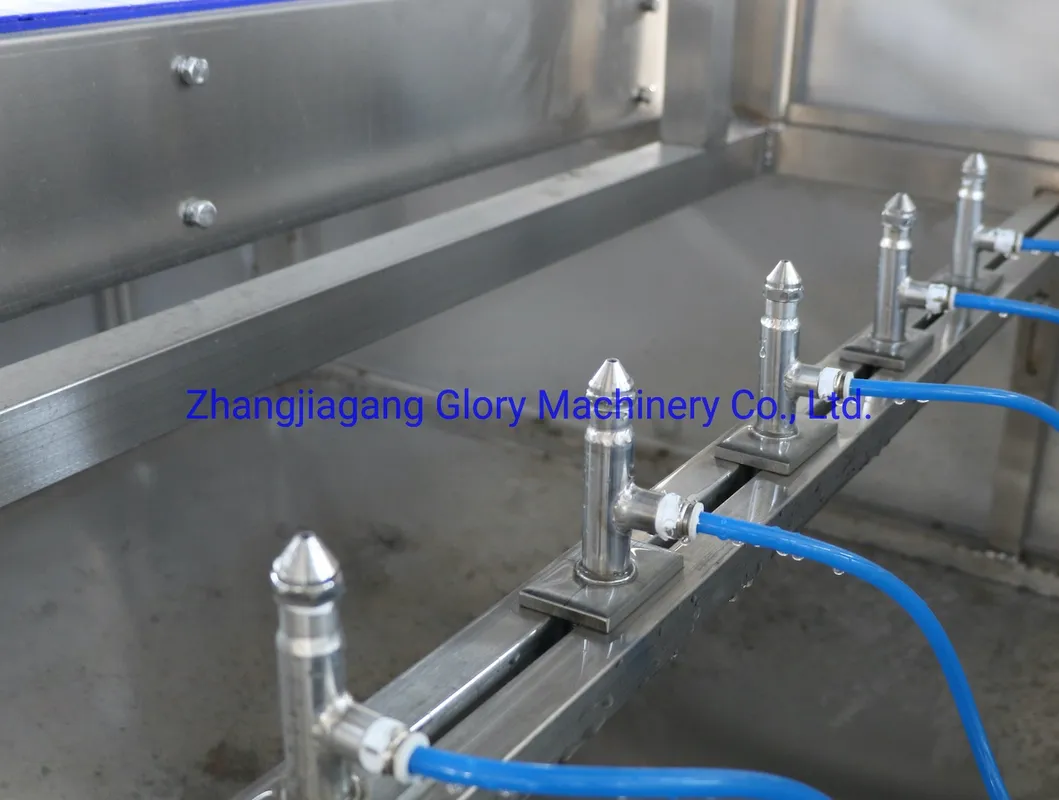

Washing heads number	8

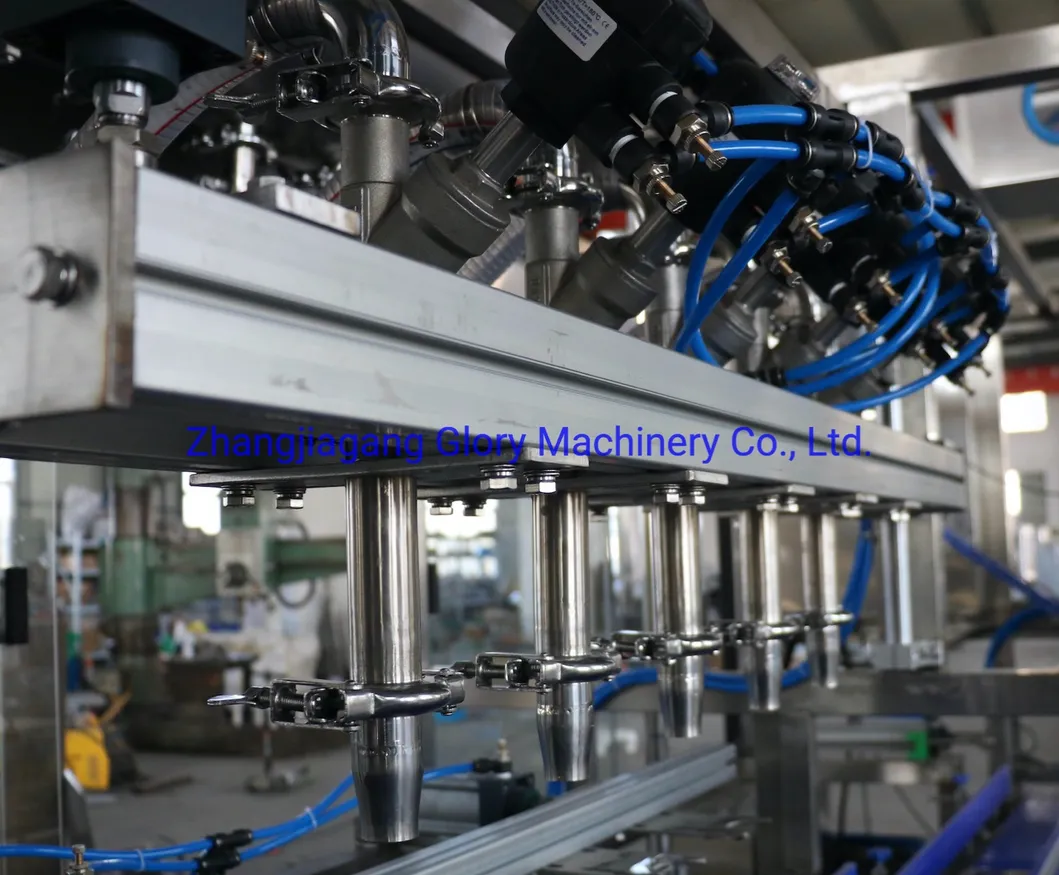

Filling heads number	8

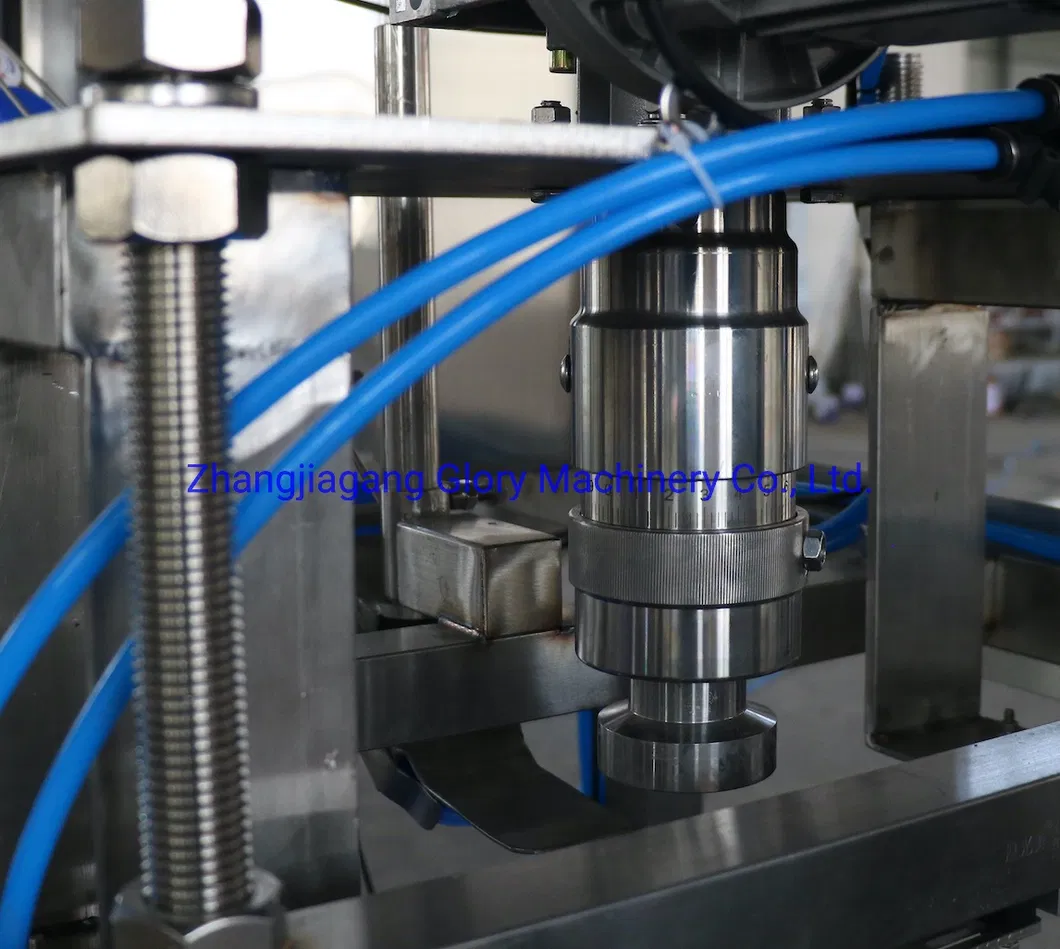

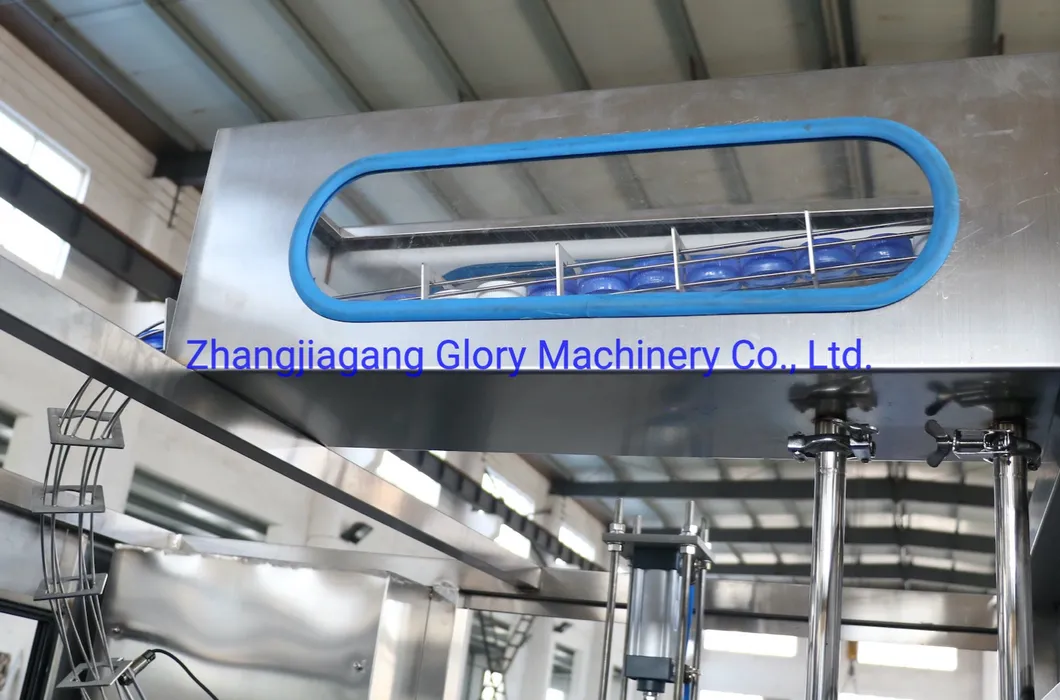

Screw capping heads	2
Filling type	Normal pressure filling for water
Power	2.1kw

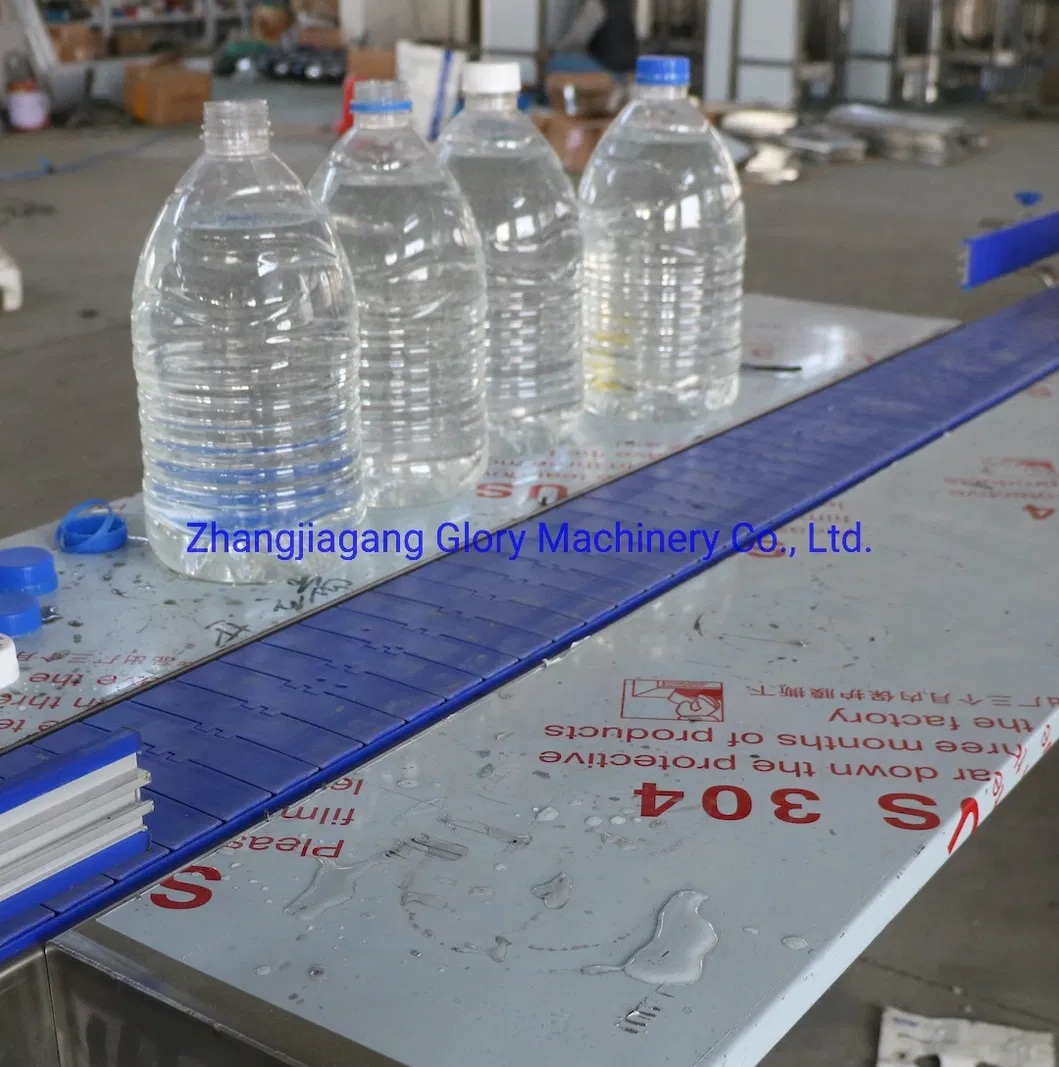

Coneyor system	6meters engineering plastic
Air consumption	0.6M³/min
Water consumption :	2000L/H
Weight	About 500kgs
Dimension	400015002300mm

3. working principle

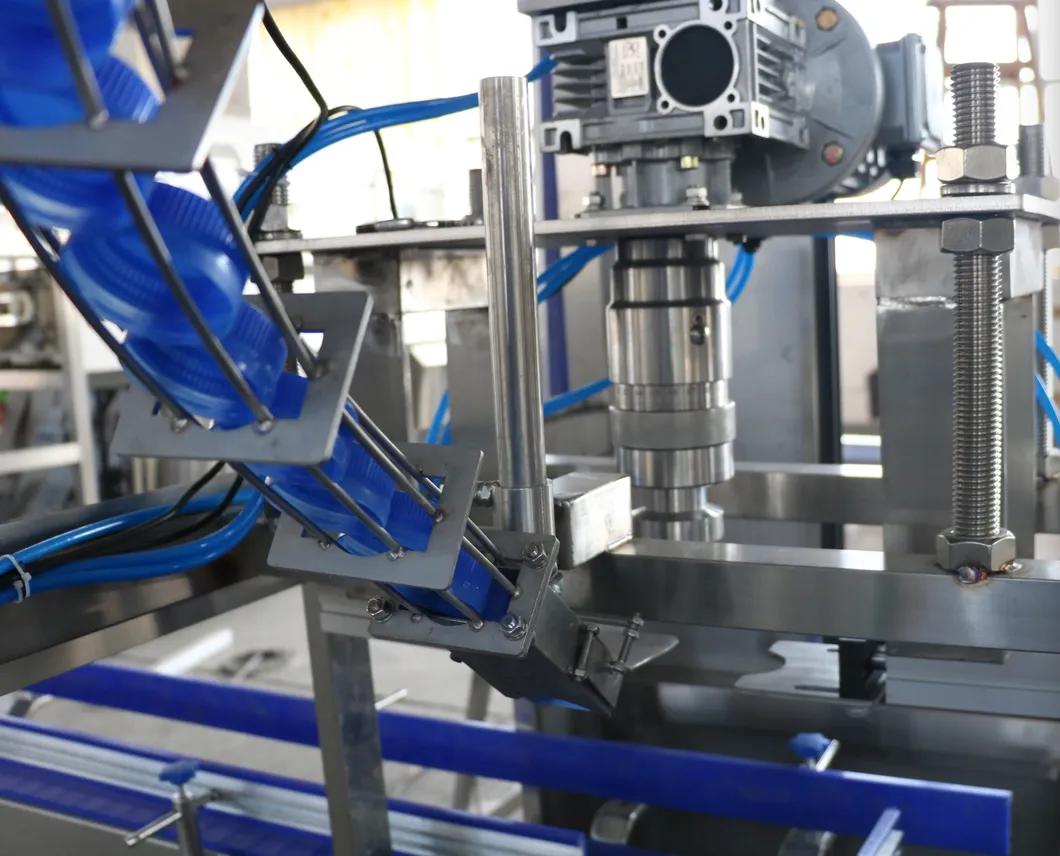

The production line start working when the bottles transported to the bottle washing machine by conveyor .at the action of cam , the bottle clips open and closed , then turn the bottles to 180°for washing . after washing the bottles back the original direction angle and open the clips . at the action of cam again , the bottles on the conveyor system. After that ,transport the bottles into the filing machine area ,there is a photo sensor on the filling machine , when the bottles transported 4pcs, the photo sensor sending data information to PLC , then PLC order the bottle blocking cylinder to sop the afterwards bottles , at the same time , another bottle blocking cylinder after filling machine working ,no letting the empty bottles go to the capping machine . at the action of program , the filling cylinders go down ,let the filling valves to into the bottles and filling , after definite time , stop filling. Then bottle blocking cylinder back ,and the full bottles go into the capping machine , the capping machine is composed by frame ,cap manager and SS chain .there is a bevel between chain capping and level line , when the bottles continue going towards and put on the cap ,then the capping screw the caps .

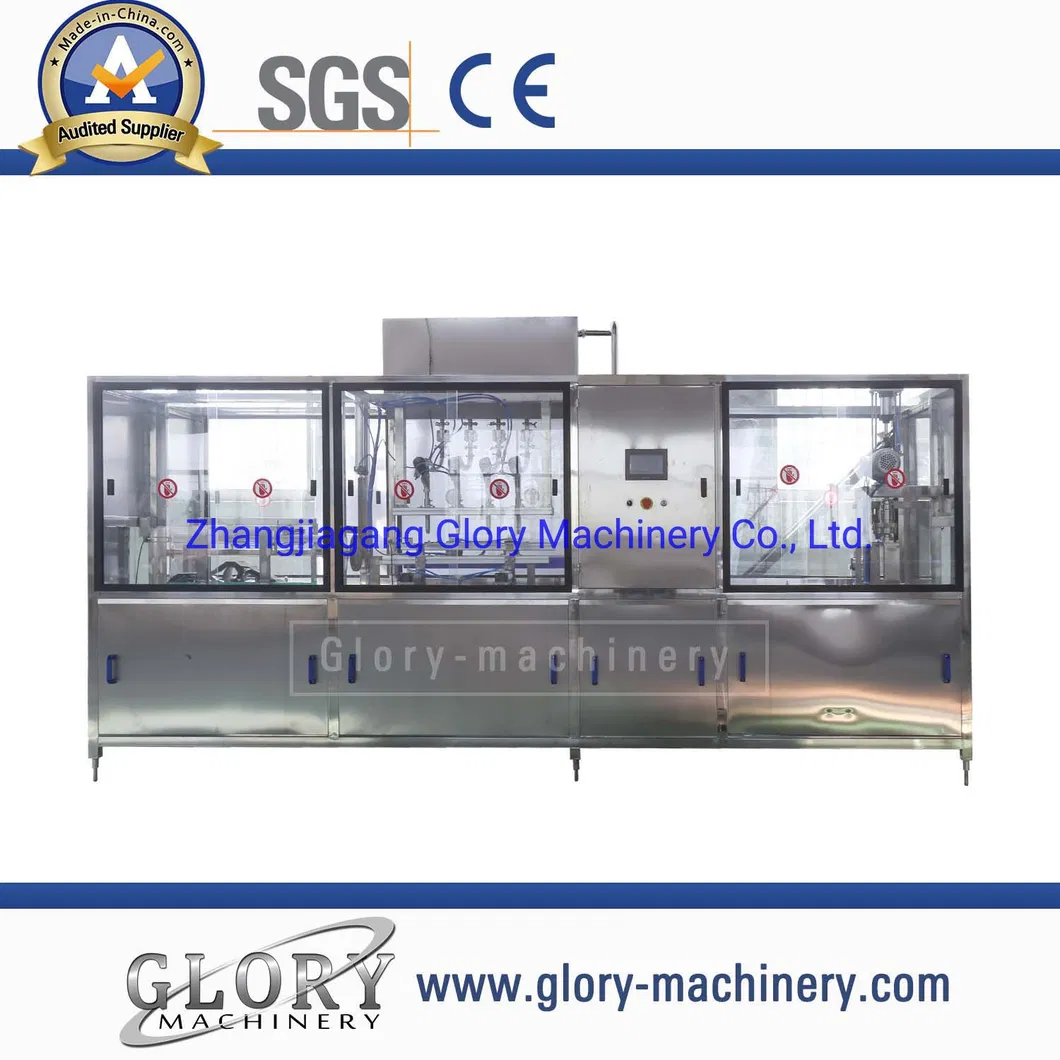

8heads 5L Bottled Water Filling Machine
