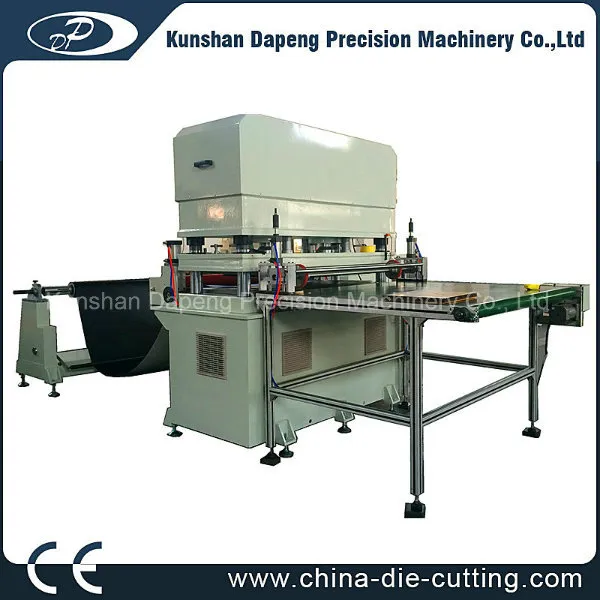

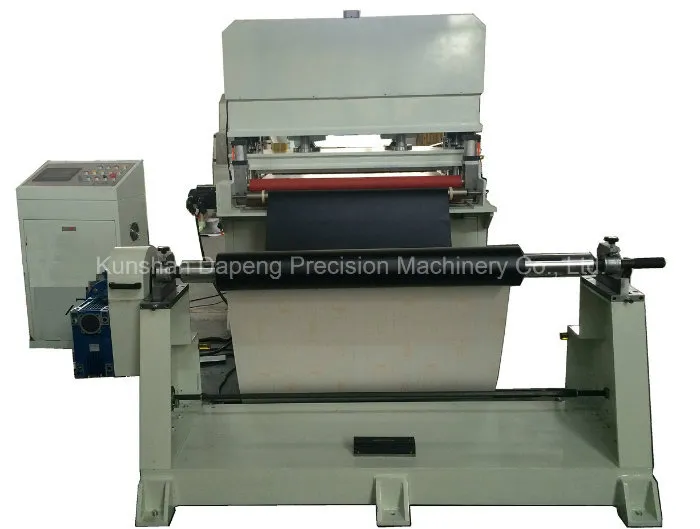

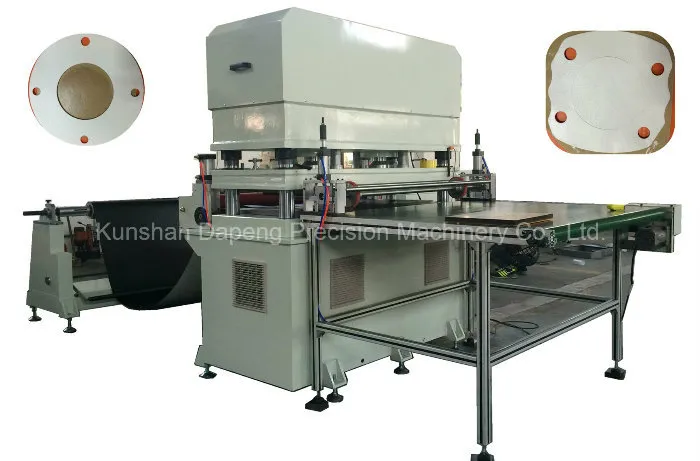

Four-Column Hydraulic Paper Roll to Sheet Cutting Machine

Four-Column hydraulic paper roll to sheet cutting machine
Powerful, Precise, Fast.
Suitable for roll materials
Available in a wide range of powers from 8 tons to 80 tons with cutting surface from 650mm*600mm up to 1000mm*800mm.

Four-Column hydraulic paper roll to sheet cutting machine Functional Characteristics
Flexible and convenient operation,
Photoelectric registering system,
A programmer controller (PLC)
Kiss Cut, through cut both available.
Anti-vibration machine feet,
A cutting speed up to 20-90 punches per minute.

Four-Column hydraulic paper roll to sheet cutting machine Scope Application
It is applied to cut various materials, such as Rubber, Plastic, Paper Board, Aluminum Foil, Cooper foil, PET, Protective film, Mylar, Reflector, Diffuser, Gaskets, Silicon Tape etc.




Technical characteristics
1. Roll to roll direct die cutting, material automatic deviation correction, repeat position accuracy within 0.05mm.
2. No need separate slicing, no need positioning pin, automatic die-cut and discharge
3. Significantly reduce labor cost, reduce production costs and improve efficiency
4. Full servo control, jumping distance can be adjusted, stable pressure and depth precision upto 0.01mm.
5. Standard die base design, excellent die and tool compatibility, saving mould cost

Application
Widely applied to die cutting for self-adhesive products, brand name plate, membrane switch, flexible circuit board, PET, PVC, PC and various rolling materials.




Note: Below technical data are for reference only. Physical machine will be subject to specific offer and proposal.

brown paper roll die cutting machine

Our this machine video:

Http: //youtu. Be/WGzsM48bmdU

Http: //youtu. Be/SkgTtBaVMzo
