Product Description

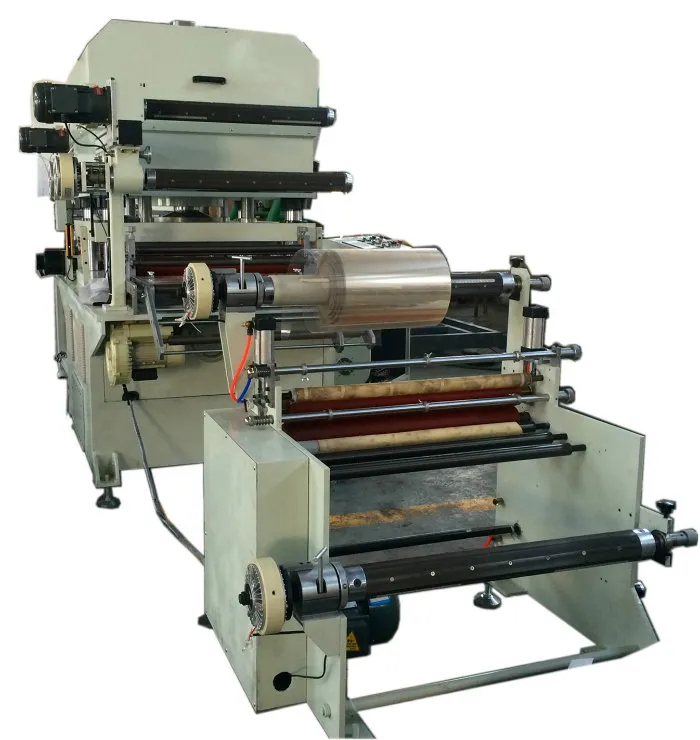

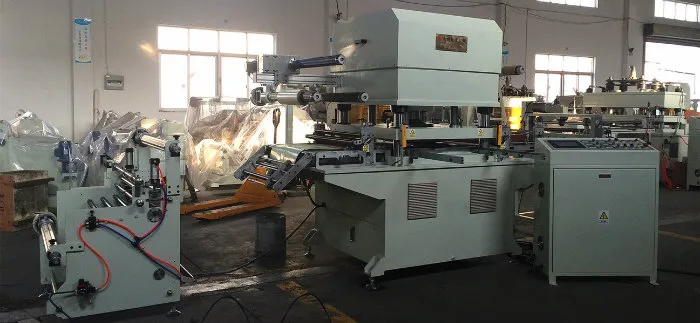

round foam cutting machinery/ Automatic Die-Cutting Machine

Functional Characteristics:

Scope applicable:

The product is developed aiming at the die cutting and forming of various insulating materials

such as PVC, film, Mylar, copper foil, aluminum foil, foam, etc. in the electronic industry.

Desc.
WITH UP PUNCHING PLATE have clamping tool that install the cutting mould easily / The oil pressure system uses advanced, durable special circuit and electric control system of high stability, up to Super level of effectiveness. Electronic positioning, precision and control in 0.02mm, inferred from round precision control at 0. 05mm. Machine feet install the SHIM, body solid and reliable. Longer tool life, processing objects can be broken and half broken, cut smooth without edges. PLC man-machine automatic program control oil system with integrated control, opto-electronic protection.

Configuration Data
1. Mitsubishi BRAND PLC
2. Touch Screen
3. Optoelectronic safety
4. Automatic Pressure regulating motor
5. Host Machine Motor
6. Oil Bump
7. Magnetic Valve ,cooler
8. Host Machine hydro-cylinder
9. Flatbed cylinder
10. Servo Motor

Scope applicable:

The product is developed aiming at die cutting and forming of various insulating materials such as PVC, film, Mylar, copper oil, aluminum foil, foam, vinyl, polyester etc.

screen protective film in the electronic industry.

Model:DP-320B

Max Feeding Width ( mm ):320

Cutting Area ( mm ):320*300

Cutting Speed ( T/M):30-170

Position Accuracy ( mm ):±0.1

Power of Main Engine ( kw ):2.2

Size ( mm ):2300*1250*1500

Voltage (V ):220

Servo Motor		Japan mitsubishi
PLC control		Japan mitsubishi
touch screen		Taiwan Weilun
transducer		Taiwan Shilin
cutting tool clutch		Taiwan Tangying
main machine bearing		NSK
