Product Description

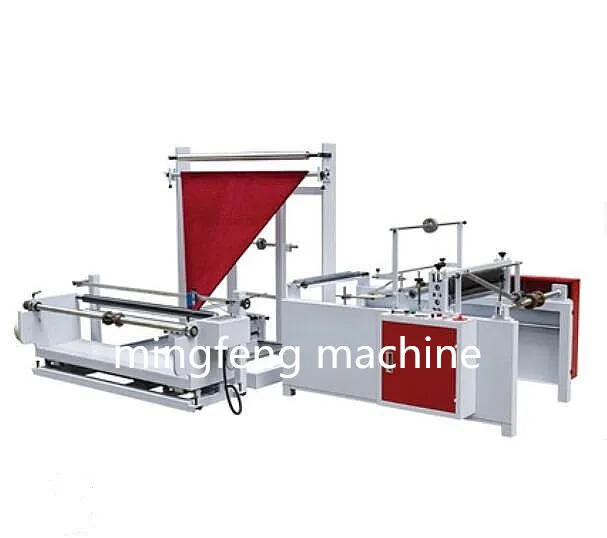

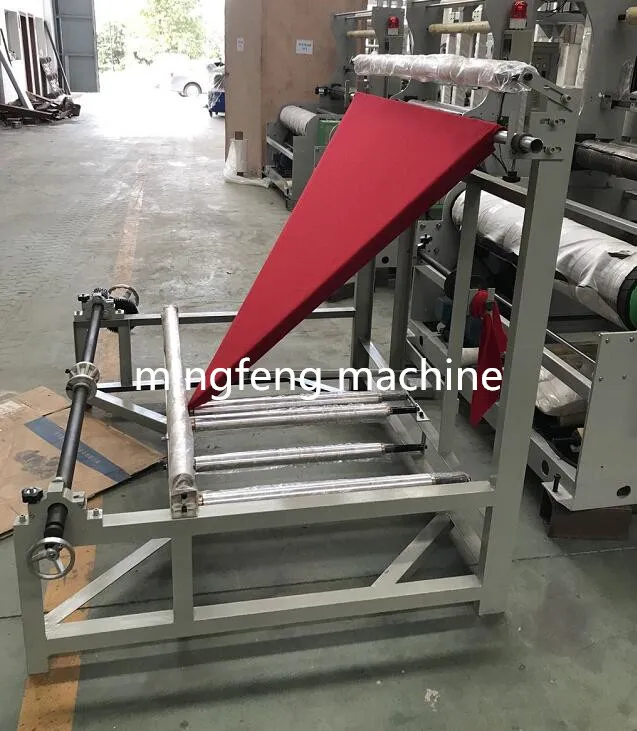

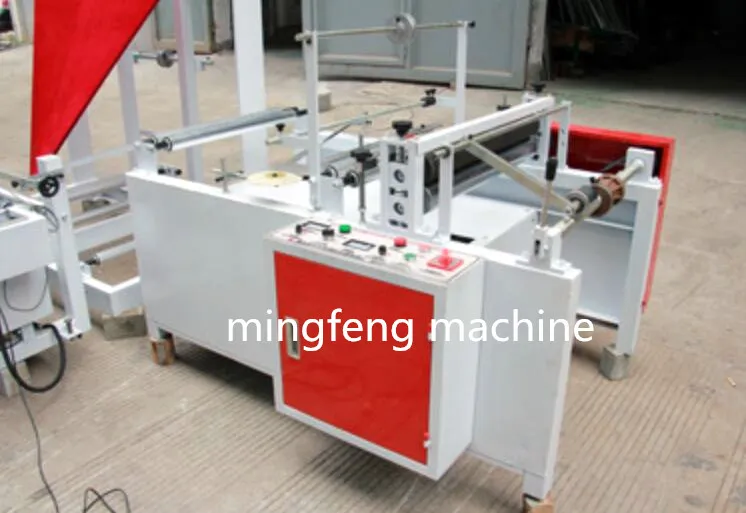

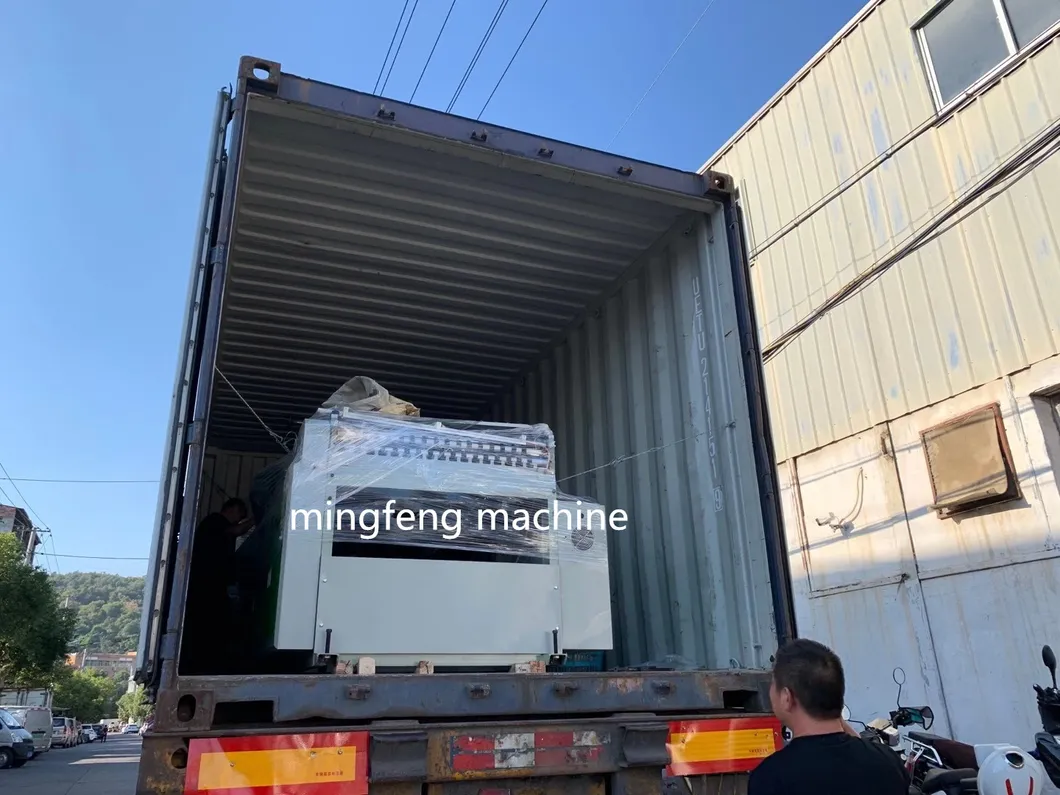

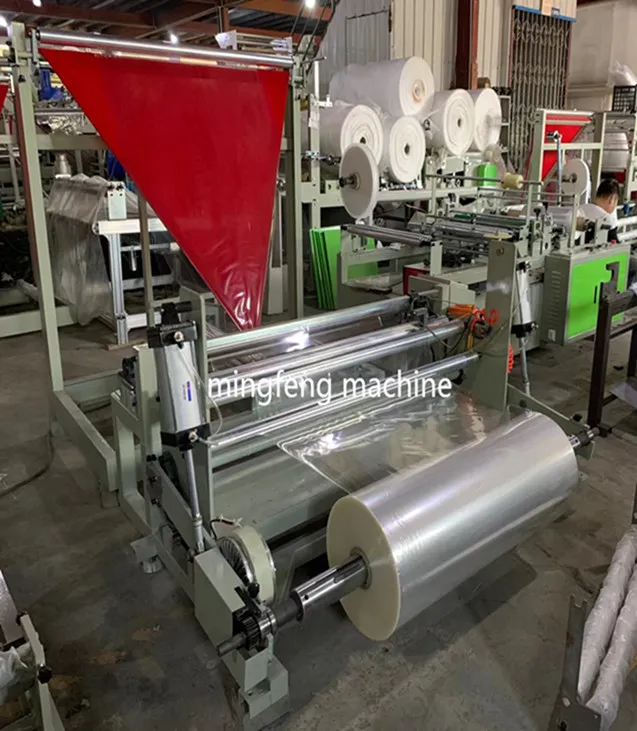

Mingfeng Brand Film Edge Folding Rewinding Machine

This machine is one part of the heat cutting machine set, suitable for folding BOPP sheet with such functions as automatic gluing, pearly-lustre film laminating, hobbling and longitudinal sealing(used together with super sonic generator) and opening breaking of roll material.

Functions:

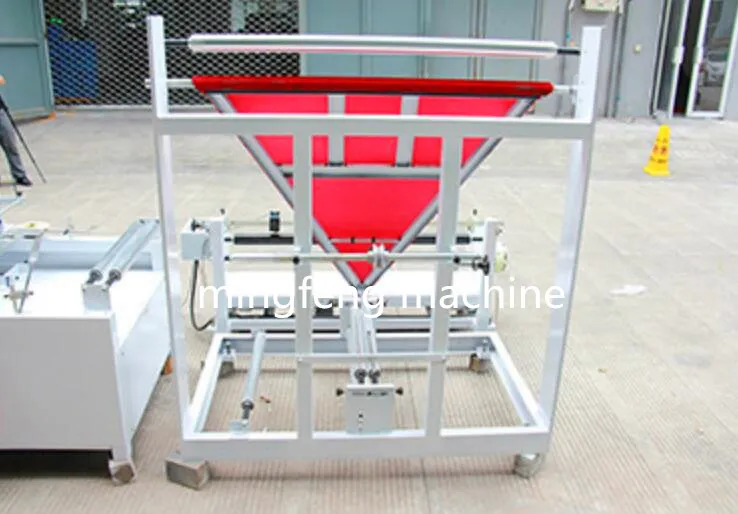

1. Film Folder
2.Bottom gusseting
3.Feed adhesive tape facility
4. Insert white tape film facility
5. EPC
6. Magnetic powder braking unwinding and Magnetic powder clutching rewinding

Optional Functions:
1.  EPC
2. Magnetic powder braking unwinding and Magnetic powder clutching rewinding
3.Ultrasonic
4.Air shaft ,etc
Main Technical Parameters:

Specification	MDZB-600	MDZB-700	MDZB-800	MDZB-900	MDZB-1000	MDZB-1100	MDZB-1200
Max rewinding width(mm)	600	700	800	900	1000	1100	1200
Max unwinding width(mm)	1200	1400	1600	1800	2000	2200	2400
Max rewinding speed(m/min)	60	60	60	60	55	45	35
General power(kw)	2	2	2.5	2.75	3	3.5	4
Weight of whole machine(kg)	400	450	500	550	650	750	850

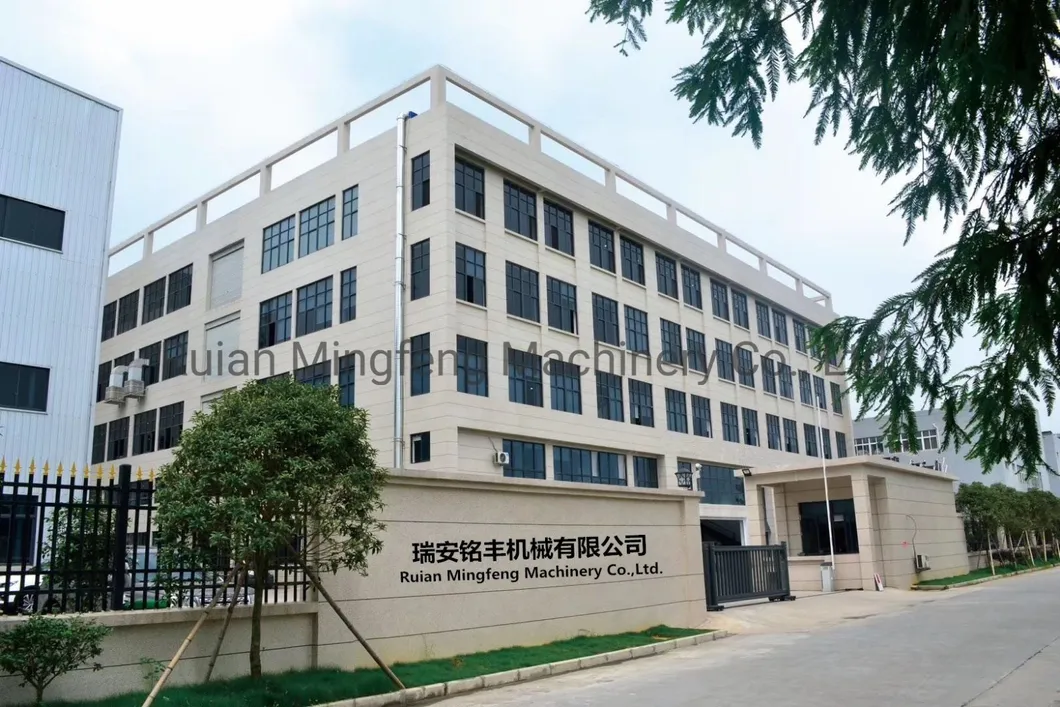

Ruian Mingfeng machinery Co., Ltd. is a professional manufacturer of plastic machinery and paper machinery enterprises.With strong technical force, perfect management and product quality assurance system.The company mainly produces film blowing machine, plastic glove machine, plastic bag making machine, recycling machine, cutting and rewinding machine, printing machine and other products, with reasonable design, simple operation, at the same time can be produced according to customer requirements.By far, we have attracted numerous domestic and foreign customers.We look forward to working together with you to create brilliant.

1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company

2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.

3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.

4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
